Create a dashboard for each building

You can set up widgets that display the status and summary for the building.

Written By Evolo Support

Last updated 9 days ago

What a dashboard can display

You can display widgets for:

  • Indoor
    climate statistics per view

  • Alarms
    : summary of active alarms

  • Ventilation
    status of the systems

  • Heat pumps
    : coefficient of performance and operation per heat pump

  • Calendar
    : operating hours and control of operations per facility

  • Dampers: Overview
    of air balance and damper openings per facility

Setup of components for the Dashboard

Evolo needs you to set the measurement type for your components so it can use them in widgets. This also applies to the Ventilation, Heat Pumps, and Indoor Climate widgets on the Dashboard, which retrieve values from all your buildings. Ventilation and Heat Pumps retrieve data only from views located in a menu.

The Information dialog in the view builder shows all the data points that are in use.

In the Components tab, you can link components in the view to widgets on the Dashboard.

Here’s how to do it

1

Open the Components tab

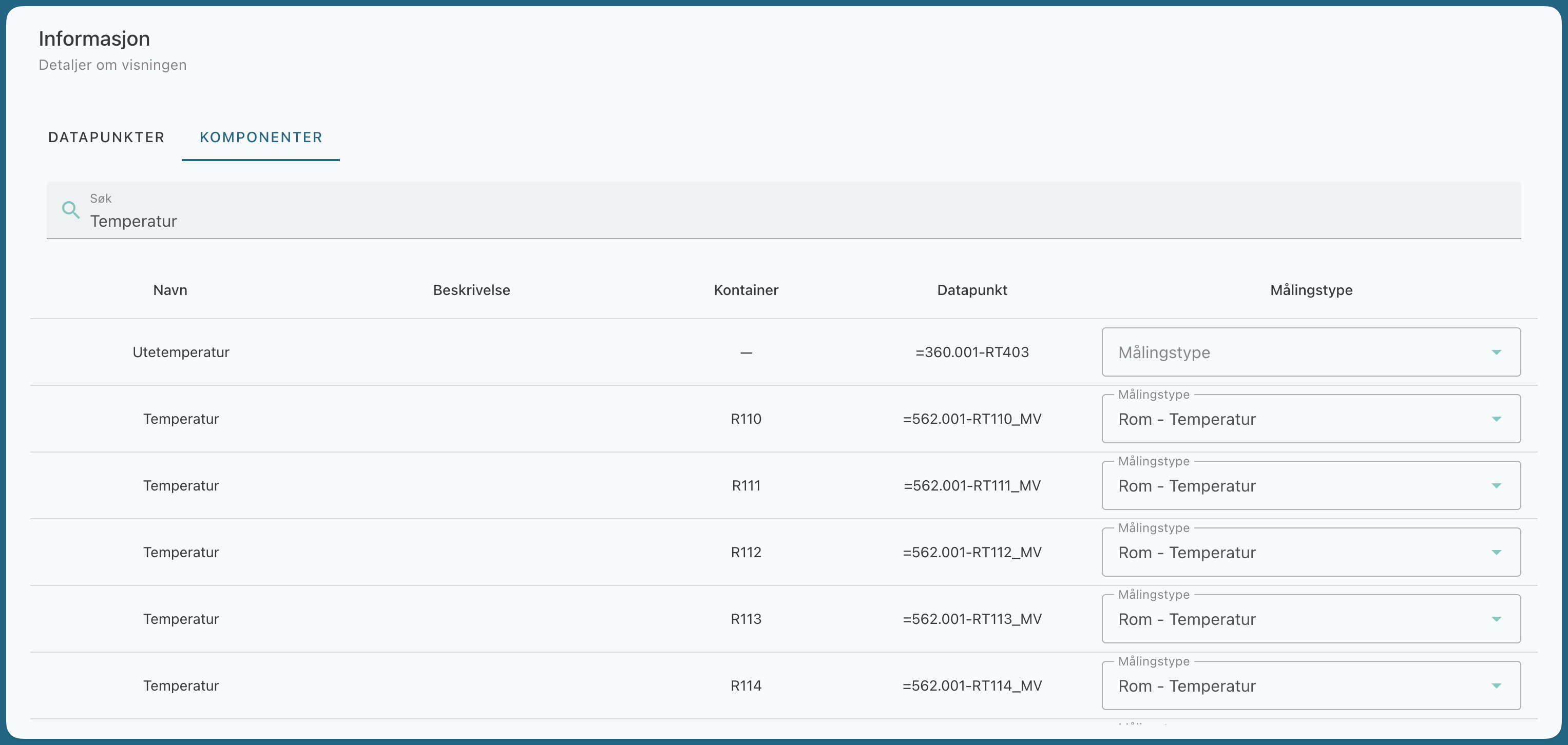

Click the Components tab in the view builder; you must have the Installer role

2

Select a measurement type

Select the measurement type for each component you want to display

Room - Temperature will instruct the system to display the value from this component/data point in the Dashboard’s Indoor Climate widget.

You can also set the measurement type for multiple components at once; see Set the measurement type for components (Set Measurement Type for Components).

Build the dashboard

One dashboard per building is a view with the Fixed Layout view type. It provides a fixed and organized layout with cards and widgets, and is consistent across all buildings and facilities.

1

Create the view

Create a new view and select Fixed Layout as the view type, or open an existing one.

2

Add widgets and cards

Open the view builder and drag the widgets you want to use from Widgets in the left-hand menu. If you want to display custom values, add a card from Containers and populate it with components.

3

Check the data

Go to view mode. Verify that the widgets display data.

Use the building dashboard when you want to give the user a quick overview of the status of a building without opening multiple detailed views.

Indoor Climate Widget

Displays a summary of the indoor climate in the building, including average temperature and CO₂ levels. The widget has one tab per view that contains the components. The colors provide a quick indication of whether the values are within the recommended range.

The widget uses the components to which you have assigned an indoor climate measurement type and has no settings of its own other than the name.

Alarms Widget

Displays a summary of active alarms in the building, grouped by priority. This allows you to quickly see if anything requires attention.

Turn on Show latest alarms in the settings if you also want to see the most recent alarms.

Ventilation Widget

Displays the status of the ventilation systems in the building, including the controlled temperature and deviations from the setpoint.

Under Data Mode, you can choose whether the widget should display real-time data, data from the last day, or data from the last 7 days.

Heat Pumps Widget

Displays how much heat the heat pumps deliver relative to the electricity they consume, with one row per heat pump. A view in which each measurement type is used only once is counted as one heat pump and receives one row, regardless of which containers the components are in. If multiple heat pumps are in the same view—for example, with two COPs—each container gets its own row.

Measurement types:

  • Heat Pump - Energy Delivered and Heat Pump - Energy
    Consumed, heat factor, and energy over the last 24 hours

  • Heat Pump - COP
    : Current COP and average COP over the last 24 hours

  • Heat Pump - Operation
    : operating status and operating hours when the signal is logged

  • Heat Pump - Supply Temperature and Heat Pump - Return
    Temperature: temperature difference

The heat factor is energy supplied divided by energy consumed over the last 24 hours—that is, the heat pump’s actual average output over a 24-hour period. COP is the value the heat pump itself is reporting right now. The heat factor and COP are red below 2.0, orange from 2.0 to 2.5, and green at 2.5 or higher. The color of the COP reflects the current value, not the average.

The figures for the last 24 hours require that data points be logged. The energy meters must have the Accumulating log type.

Calendar Widget

Displays the operating times for the calendar objects you select.
Under Calendar Objects in the settings, you can choose which objects the widget should display.

Controlling Operations from the Calendar Widget

The Calendar widget allows users to control operations directly from the dashboard—without access to the rest of the calendar. Users with access to the view can start or extend operations on the objects in the widget, except for the Observer role. If you share the view with Write access, those with the link can do so as well.

  • Start an operation when an item is idle, or Extend an operation while it’s running

  • Select duration: +1 hour, +2 hours, until 10:00 PM, or through the day

  • The change is a one-time event—the regular schedule remains unchanged

Grant a tenant access to the view, and they can manage operations at their properties, but they won’t see anything beyond what you’ve selected on the map.

Dampers Overview Widget

Provides a comprehensive overview of the air balance. It shows the balance between supply air and exhaust air, how much each damper is open, and a brief insight.

You can choose between two display modes:

  • Overview
    shows only the dampers and the air balance

  • Optimization
    highlights control dampers, sorts by opening, and provides a hint about fan pressure

To set up the widget:

1

Add the card

Add a Damper Overview card in the view builder.

2

Add dampers

Add one or more supply and exhaust dampers. Select Type (Supply or Exhaust), and give the damper a name if you want.

3

Select data points

Select the data point for Airflow (m³/h).

Opening (%), Boost (%), Vmin (m³/h), and Vmax (m³/h) are optional. Click Update.

Colors and hints

Hover your mouse pointer over the question mark at the bottom of the card to see what the colors mean. A damper regulates best between 50 and 90% opening. Red means the damper is almost closed or almost fully open, and gray means it is closed.

Dampers set to minimum airflow—for example, at night or in empty rooms—may be set to 10–20% and will appear red. This is normal.

In Optimization mode, the card provides a hint about the fan pressure, based on the most open damper.
