Use the BACnet schedule in the calendar

Here you can see how to use a pre-configured BACnet schedule in the calendar. A BACnet schedule is used to control fixed weekly times and modes for a facility.

Written By Evolo Support

Last updated 11 days ago

Before You Begin

This article applies to the use of a BACnet schedule that has already been set up by an installer.

If you do not see the BACnet Schedule tab in the calendar, an installer must first set up a BACnet Schedule object.

Here’s how to do it

  1. Go to Calendar.

  2. Open the BACnet Schedule tab.

  3. Select the correct schedule in the Selected Schedule field.

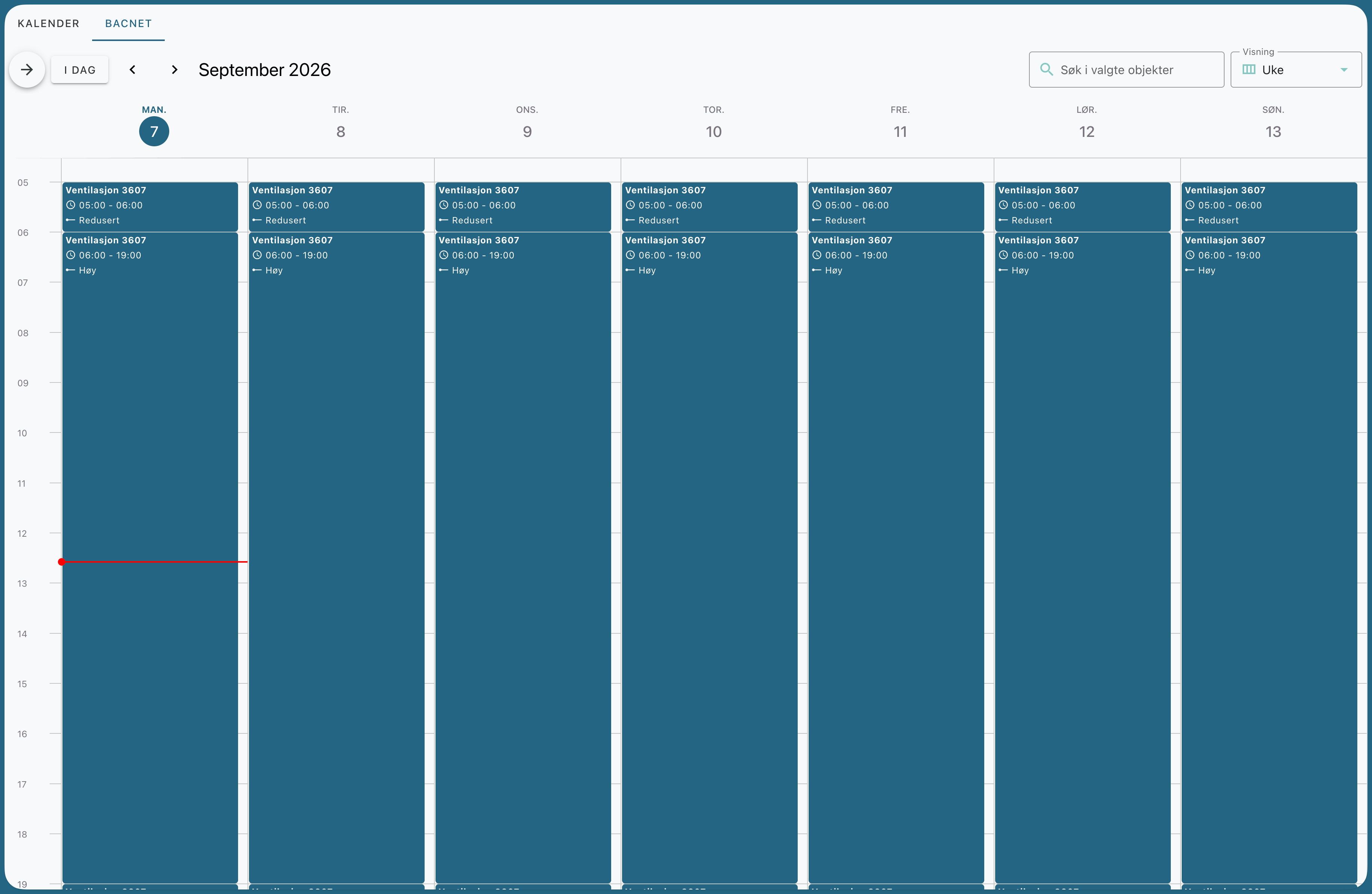

  4. Click the day or time you want to change in the weekly overview.

  5. In the Edit Schedule window, select the desired Time.

  6. Select the desired Mode.

  7. Click Save.

Change the schedule

Edit or Delete an Event

When you click on an event in the weekly overview, the Edit Schedule window opens.

Here you can:

  • change the time when the event is scheduled to take place

  • change which mode to use

  • delete the event if it should no longer be included in the schedule

Click Save to update the event, or Delete to remove it.

Use Deviation

On the right side of the view, you’ll find the Exceptions field.

Here you can enter exceptions to the regular weekly schedule, such as for holidays, vacations, or other days with deviating operations.

Use exceptions when the facility is to follow a different mode than the regular schedule for a specific date or period.
