Create a BACnet schedule object

Here's how to do it

1. Go to Setup and select Calendar Setup.

2. Click Add New Calendar Item and select BACnet Schedule.

3. Enter a name for the calendar item.

4. Select the data point for "Schedule Weekly."

5. Select the data point for "Exception Schedule."

6. Select the data point for "Effective Period."

7. Select the data type the calendar should write when the configuration changes.

8. Save the calendar object.

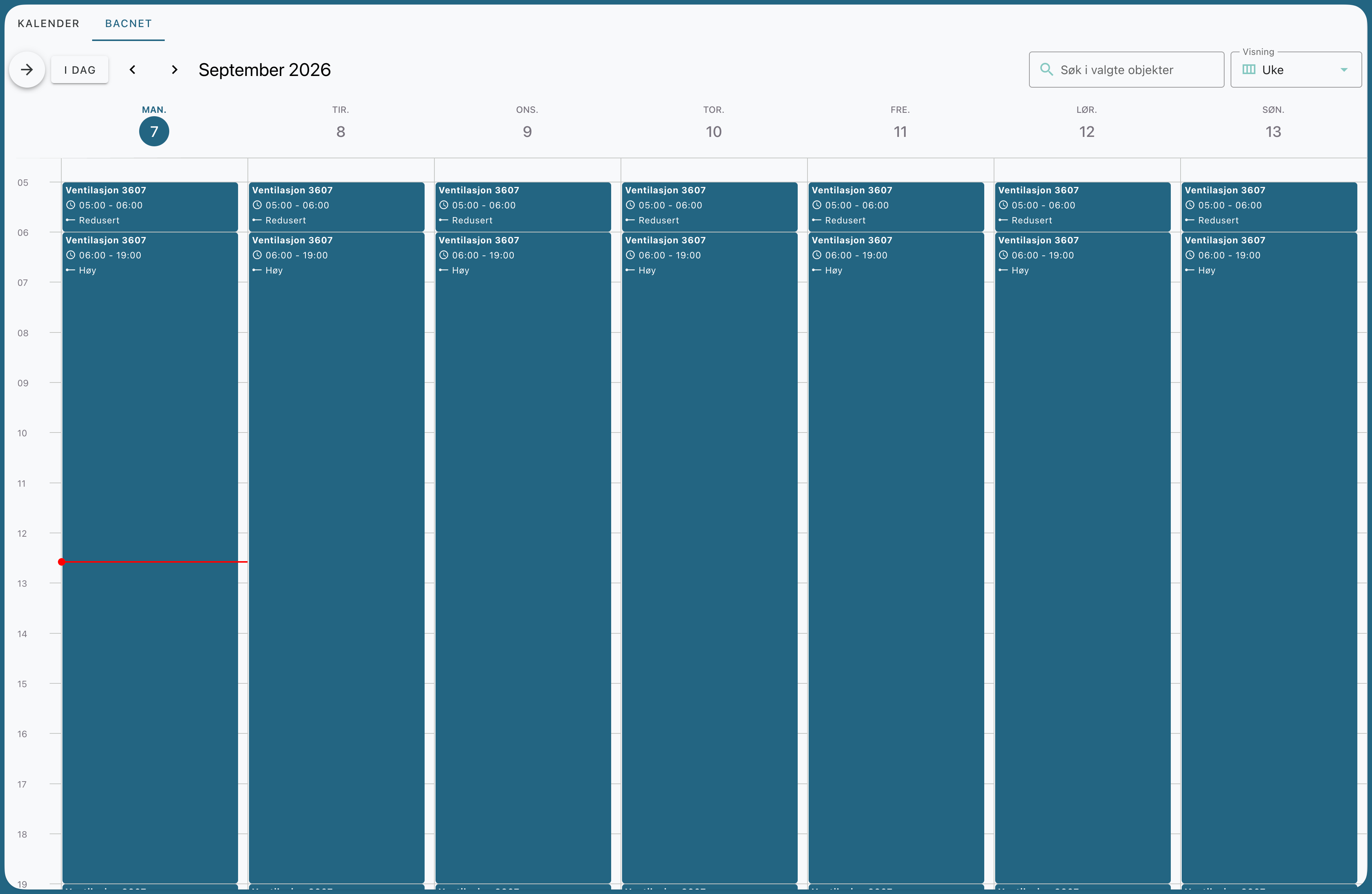

Use the weekly schedule

Once the calendar object has been created, a separate tab will appear in the calendar module. There, you can manage the weekly schedule for the facility.

1. Click on the days in the weekly schedule.

2. Enter the desired events and time intervals for each day.
