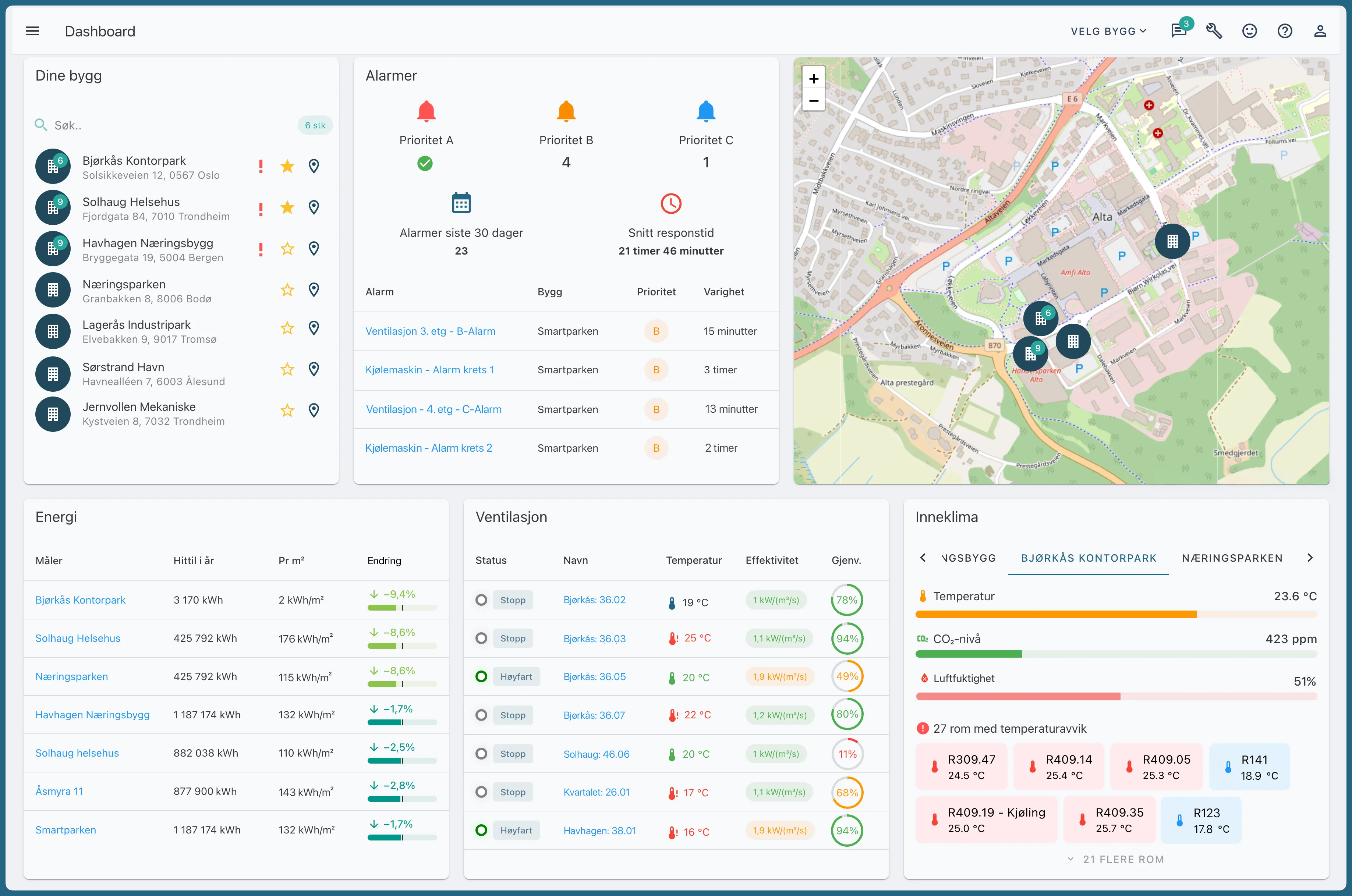

Here you can navigate between organizations, choose which widgets to display, and quickly access information about operations, alarms, and indoor climate.

Widgets

The dashboard can be customized with widgets. Click the widget icon in the top right corner to add the widgets you want to display.

Your Buildings

Displays a searchable list of buildings in the organization.

• Each building can be marked as a favorite for quicker access.

• Builds with active alerts are displayed with an alert icon.

Map

Displays a map of all buildings and their locations.

• Buildings are marked with icons.

• You can zoom in on the map and click on a building for more information.

Ventilation

Displays the status and key figures for ventilation systems.

• Mode, such as stop, normal, or high speed

• System name

• Temperature relative to setpoint

• Efficiency (SFP) – specific fan power

• Recovery rate

Alarms

Provides an overview of the alarm status in your buildings.

• Number of active alarms broken down by Priority A, B, and C

• Total number of alarms in the last 30 days

• Average response time before alarms are acknowledged

• A table showing the latest alarms, including building name, priority, and duration

Indoor Climate

Displays key indicators for indoor climate in the buildings.

• Average temperature

• CO₂ level (air quality)

• Number of rooms with movement (active rooms)

• Number of rooms with temperature deviations from setpoint

The widget also shows which rooms have deviations.

Setting up components for the Dashboard

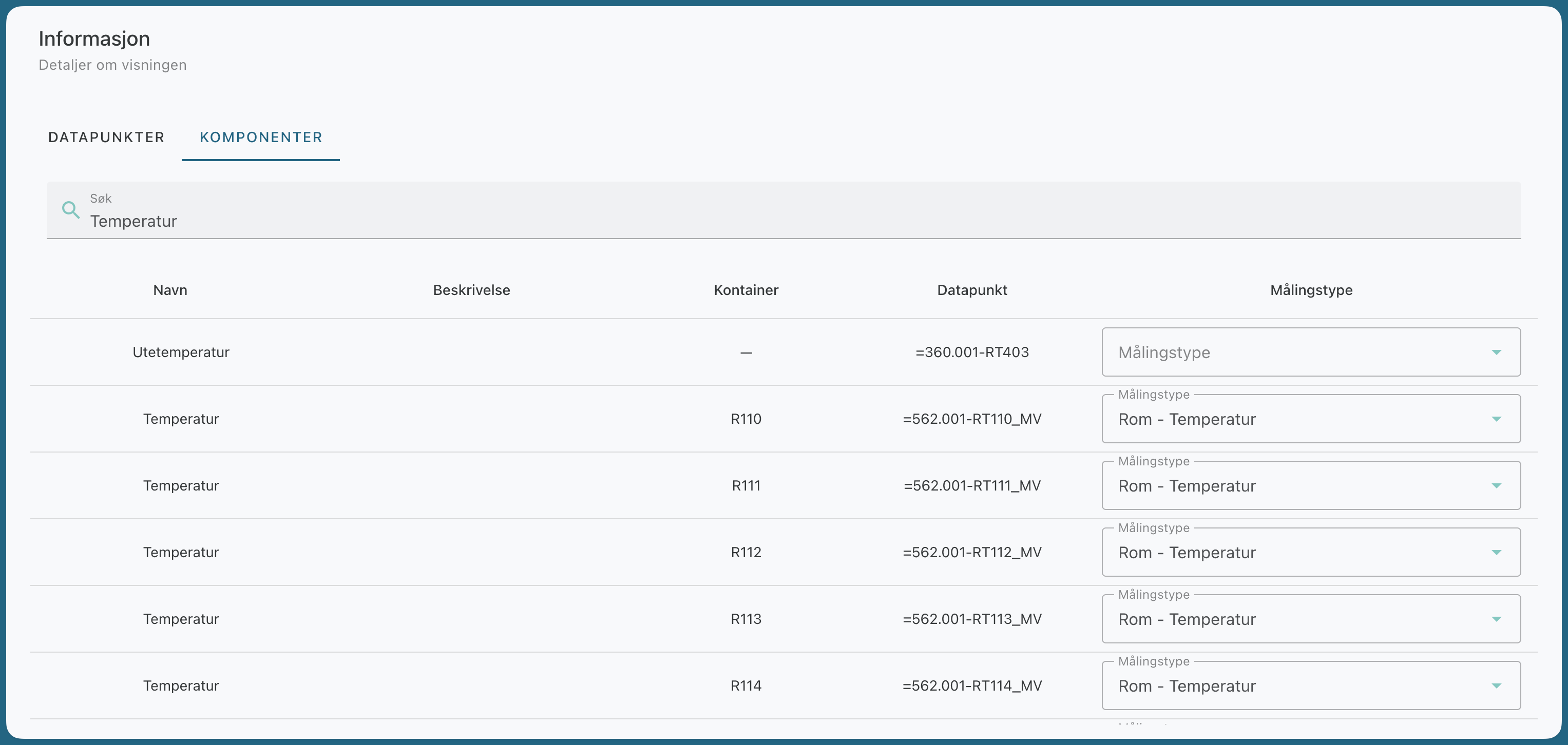

The Information dialog in the view builder displays all data points that are in use.

In the Components tab, you can link components in the view to widgets in the dashboard.

Here’s how

1. Click the Components tab in the view builder; you must have the Installer role

2. Select Measurement Type for each component you want to display.
