News from Evolo May 2023
New in Evolo: Improvement of symbols in view builder 🎉
Written By Aleksander Bless
Last updated 14 days ago
News and Improvements
Improvements to symbols in your view builder
We have listened to your feedback regarding improving the design of all figures and HVAC symbols in the view builder. They have been given a completely new design with brighter colors.

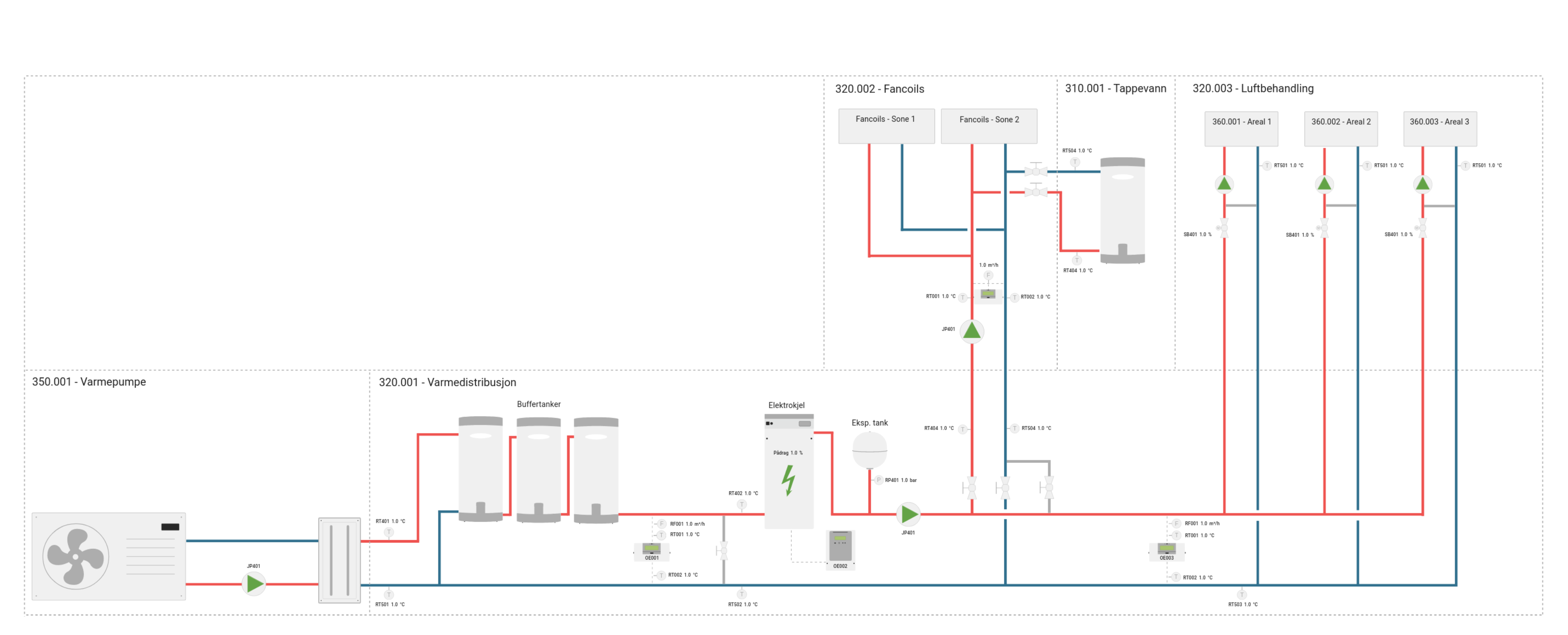

Example: New heating plant
Several new symbols have also been introduced to give you even more options for visualizing your automation solution.
- Energy meter
- Water energy meter
- Fan
- Heat exchanger
- Humidifier
- Dehumidifier
- Heat pump
- Water heater
- Water tank
- Expansion tank

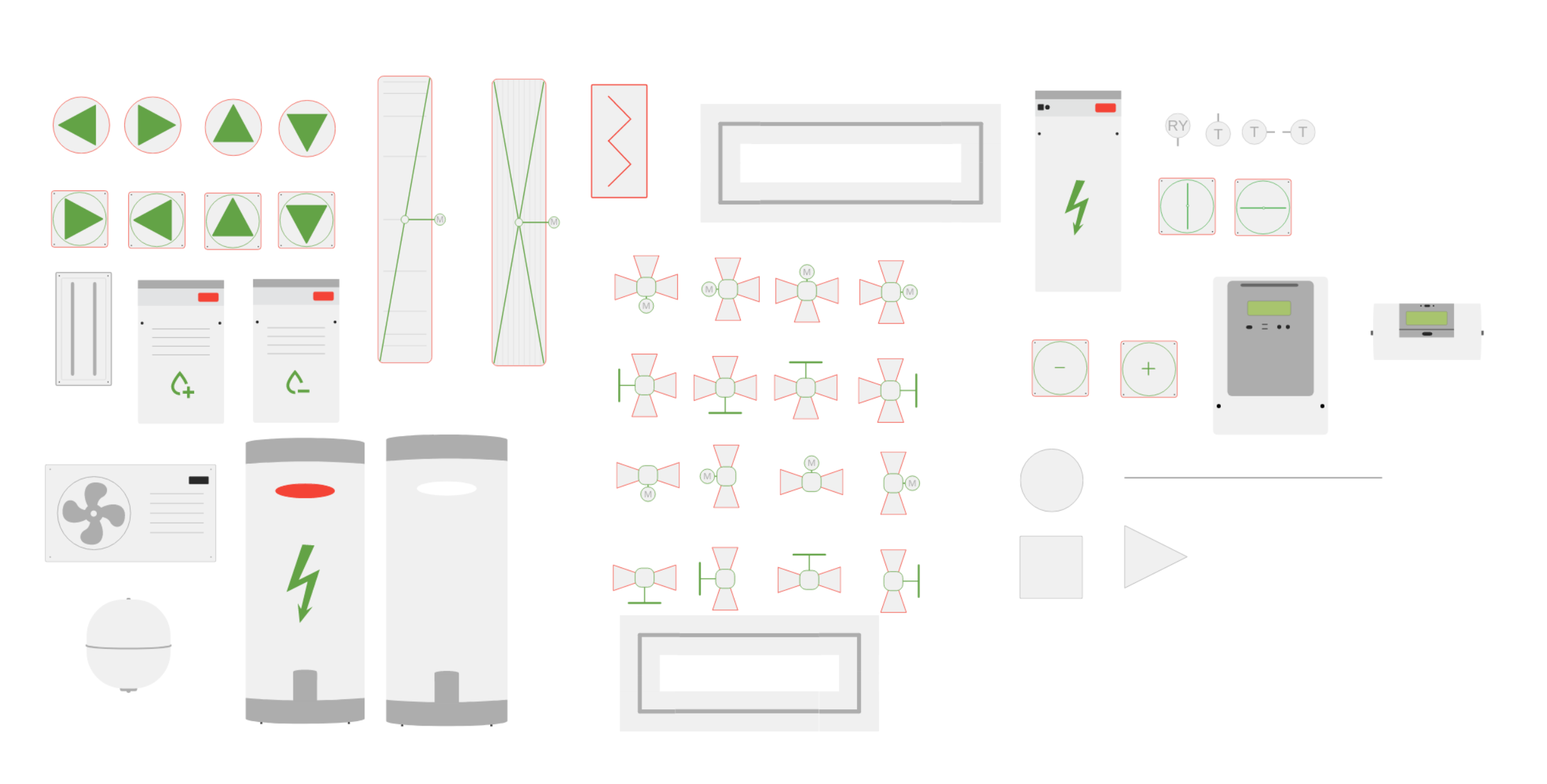

Example of new HVAC symbols

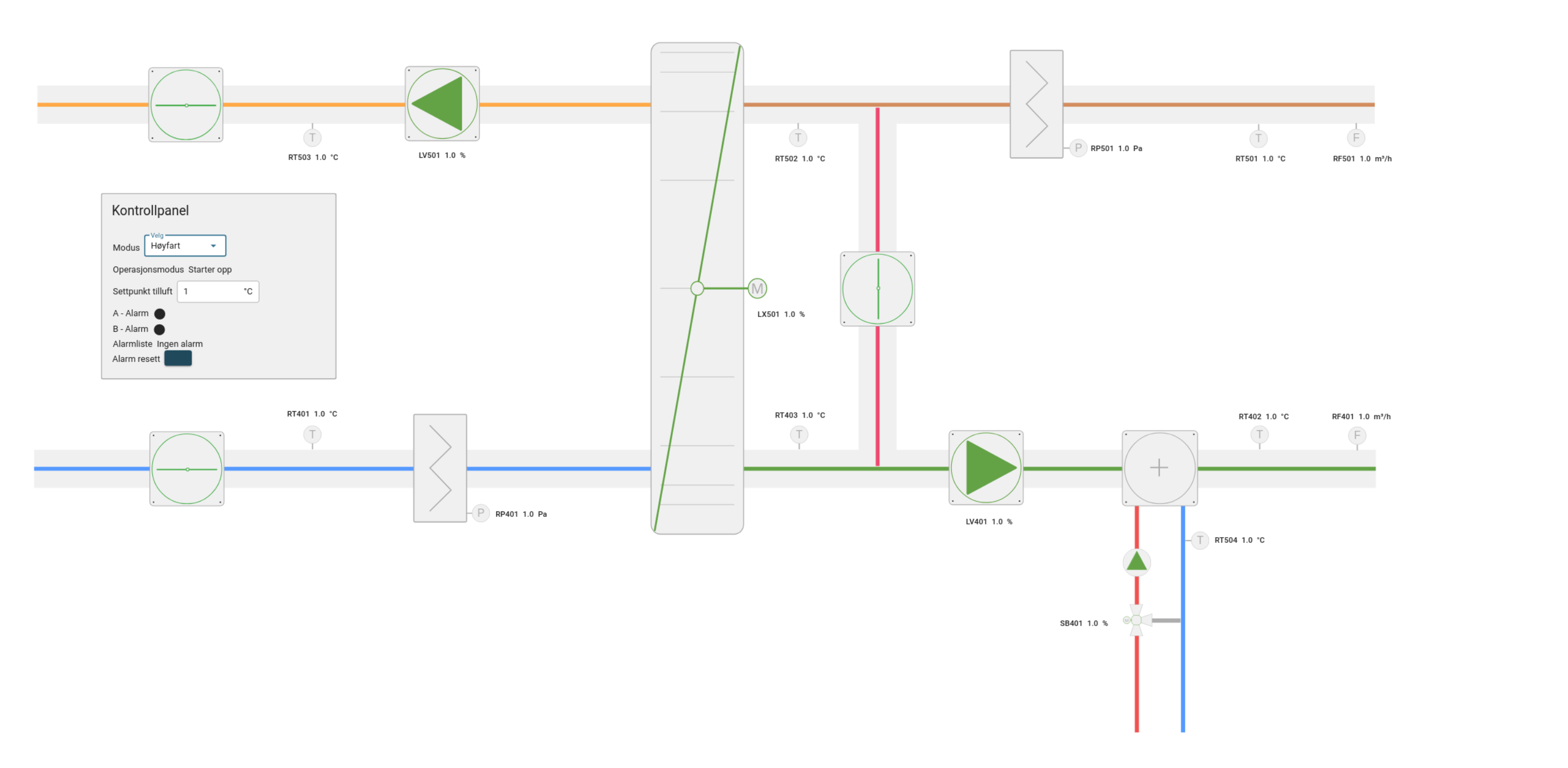

Example of a new view for a ventilation system
You can still find the outdated symbols in the side menu of the view builder. You can continue to use these, but we recommend replacing them for an improved view.
General improvements to views
- Timestamp: It is now possible to define the format of the displayed date.
- Link: It is now possible to change the text size for links.
- Tabs in the side menu box: Drag and drop the tabs to reorder them in the side menu.
- New menu bar for containers: When editing a room/box, right-click -> Components to reorder components, or drag and drop new ones from the side menu.
- Pipes: You can now change all the colors of a pipe.
- Sensors: You can now choose the text displayed in sensors yourself.
All updates are based on tips we receive from you, the users of the Top System; we appreciate all feedback. 😊
Tip!
You can find help articles in our knowledge base.
Read more about our latest improvements in the knowledge base
