Water consumption with Smartvatten

The Smartvatten app lets you connect to Smartvatten to retrieve consumption data from your water meters. This makes it easier to include water consumption as part of your energy monitoring or reporting.

Get started

1. Go to Configuration → Applications

2. Click "Add new application".

3. Fill in the required fields for the Smartvatten app.

The following fields must be filled out:

• Name and description
  Enter a name for the application and add a description if desired.
• Gateway
  Select the gateway for the data points to be used.
• API Key
  You can obtain an API key by contacting Smartwater Support.
• Data Points
  Select the data points you want to write data to. We recommend that you create a virtual data point with the data store type.
• Device

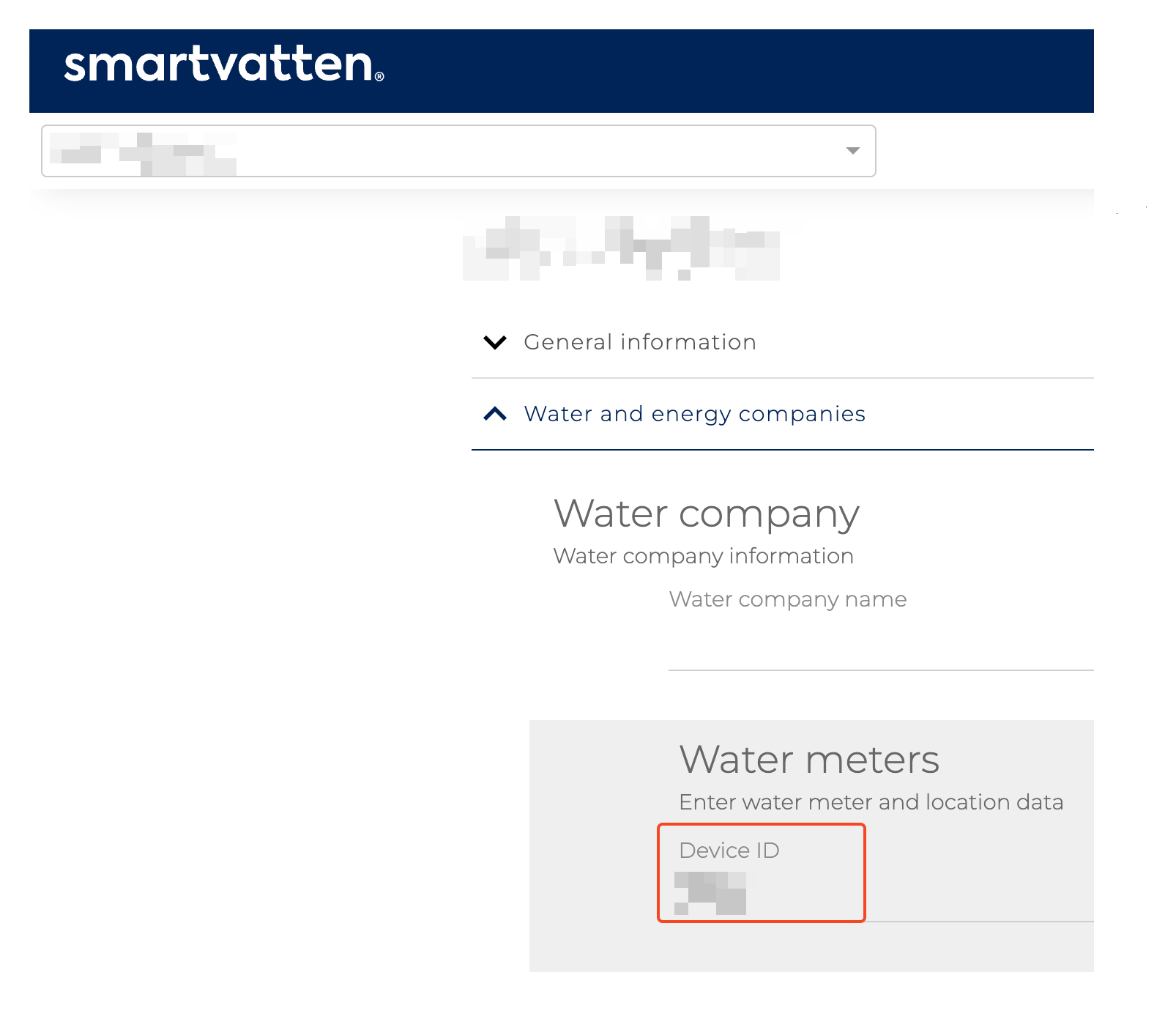

  Find the Meter ID (Device ID) by navigating to the desired building/location in Smartvatten and copy the ID of the meter you want to retrieve data from.



• Type
  Select the type of data you want to retrieve from Smartvatten.

Finish by clicking "Create"

Complete the process by clicking "Create." The gateway will then retrieve data every 15 minutes and store it in the selected data points.
