BACnet time schedule object

A BACnet schedule calendar object allows users to add events to the calendar by linking it to an editable data point. Follow the steps below to create and configure such an object.

Setup

1. Go to Configuration → Calendar Objects

2. Click Add New Calendar Object and select BACnet Schedule

3. Enter the required information:

Name: Give the calendar object an appropriate name.

Data Points:

• Select the data point for 'Schedule Weekly'.
• Select the data point for 'Exception Schedule'.
• Select the data point for 'Effective Period'.

These data points must be added for the BACnet device for which you want to change the calendar setup.

Data Type: Specify which data type should be written to the calendar when the schedule is changed.

BACnet Schedule

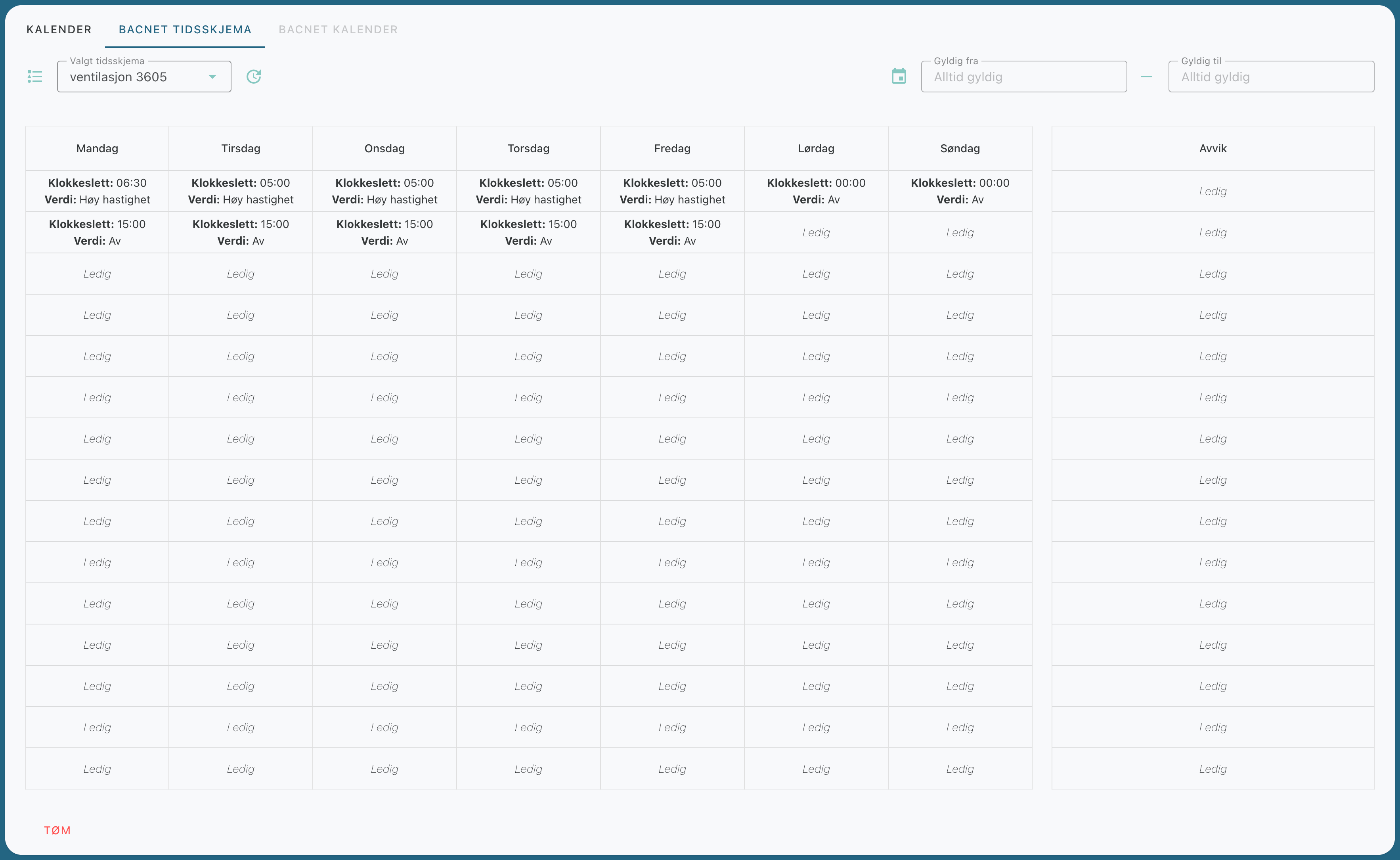

Once the calendar object has been added, a new tab will appear in the calendar module. Here you can manage the schedule for your ventilation system or other systems.

Weekly schedule setup

1. Click on the different days in the weekly schedule.
2. Set up the desired events and time intervals for each day.
